Process Matching
Robot, welding source, safety and fixture choices should match the part drawing and weld quality target.
Automated submerged arc robot for tank longitudinal and circumferential seams where long weld consistency matters.
Product Overview
Key details at a glance

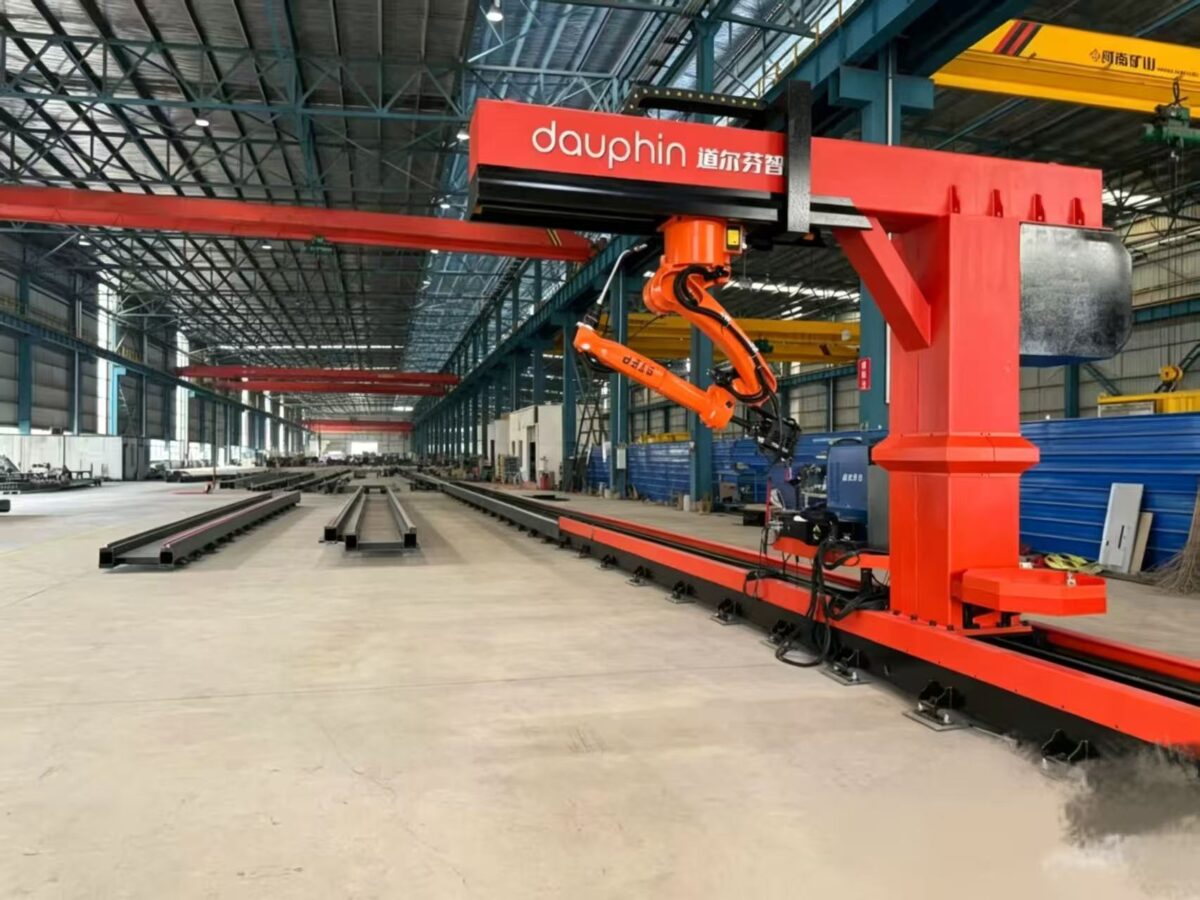

This is an 8-axis cantilever overhead mounted workstation, designed for flexible large-range welding and processing.
Quote-Ready Inputs
Send material, thickness, weld length, quantity, takt time and destination market to speed up the first recommendation.
Commissioning Support
Daophin can discuss fixture design, installation guidance, training and export-ready delivery planning.
Product Specifications
| Parameter | Specification |
|---|---|
| Weld seam | longitudinal/circumferential |
| Best fit | storage tanks |
| Options | tracking, roller support |
| Welding process | SAW carriage, gantry, column-boom and flux recovery options |
| Typical materials | medium and thick carbon steel plates |
8-Axis Cantilever Overhead Mounted Workstation
Share process, material, thickness, workpiece drawing, output target and destination market for this robot cell.
